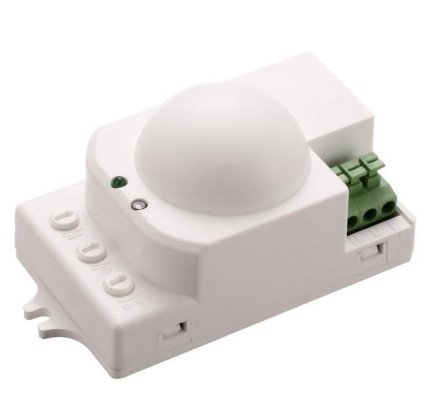

Microwave Pir Motion Sensor HC-27

New Products

Microwave Pir Motion Sensor HC-27 The product is a new Energy Saving Sensor, it adopts Microwave Sensor mould with high-frequency electro-magnetic wave (5.8Ghz) and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. The wide detection field depends on detectors. It works by receving human motion. When one enters in the detection field, it can start the light load & when there is no active human presence the light will be deactivated automatically. It also automatically identify day and night. Its installation is very convenient. Detection is possible to go through doors, panes of glass or thin walls.

Applications

Conference Room / Meeting Halls
Office / Stores
ATM / Malls
Locker Rooms / Basements
Corridors
And Many More!!!

Specifications
Detection Range	360°
Power Source	220-240V/AC
Power Frequency	50/60Hz
HF System	5.8GHz CW radar, ISM band
Transmission Power	<0.2mW
Rated Load	Max.1200W & 300W
Detection Distance	1-8m (radius), adjustable
Time Delay	10 sec±3 sec to 12min±1min(adjustable)
Ambient Light	<3-2000LUX(adjustable)
Detection Motion Speed	0.6-1.5m/s
Installation Height	1.5-3.5m
Power Consumption	Approx.0.9W
Detection Speed	0.6 -1.5m/s
