HC-123 IR sensor

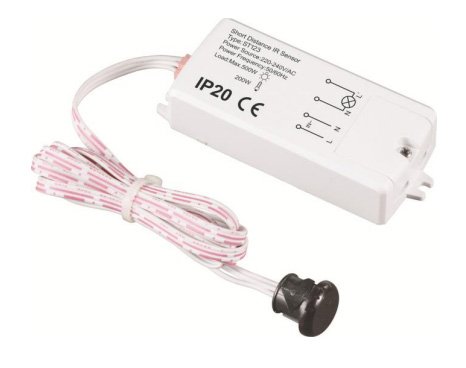

HC-123 IR sensorHC-123 is a short distance IR sensor. Its ON or OFF is controlled by the opening and closing of the door. When you open the door, the sensor detects the motion and turns on the lights. The lights will be switched off until the door is closed.

Features

  • When the door opening (>5cm), the lights will be turned on.
  • When the door opening (<5cm) or being closed, the lights will be turned off
Specifications
Power Source 220-240V/AC
Power Frequency 50/60Hz
Rated Current 5A
Detection Distance 5-6cm
Rated Load Max.500W
Working Temperature -20~+50℃

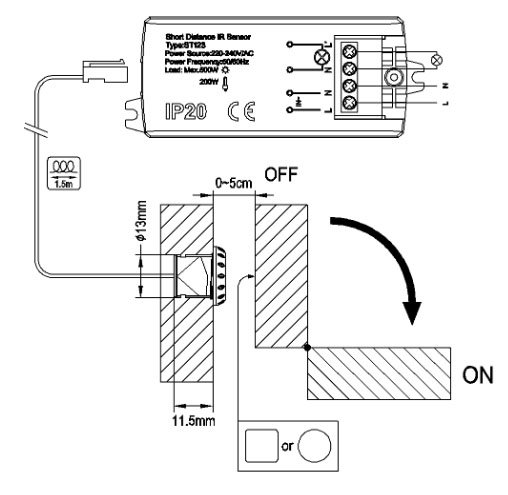

TECHNICAL DRAWING

HC - 123
