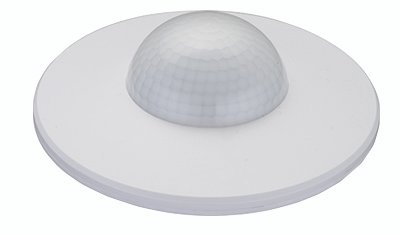

PIR Motion Sensor HC - 24

PIR Motion Sensor HC - 24The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.





Features

• Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.

• SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 3m and high sensitivity could be 20m which fits for large room.

• Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

  • Specifications
  • Power requirement
  • 220 ~ 240VAC / 50Hz
  • Loading
  • 2,000W for resistance
  • Power Source
  • 220-240V/AC
  • Detection Range
  • 360º
  • Power Frequency
  • 50/60Hz
  • Detection Distance
  • 3-20m (<24?) adjustable
  • Ambient Light
  • <3-2000LUX(adjustable)
  • Working Temperature
  • 0.1~3.0 m/sec.
  • Time Delay

  • Min10sec±3sec
    Max30min±2min
  • Working Humidity
  • <93%RH
  • Power Consumption
  • approx 0.5W
  • Rated Load

  • Max.2000W
    1000W

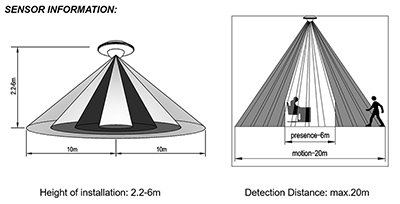

  • Installation Height
  • 2.2-6m
  • Detection Motion Speed
  • 0.6-1.5m/s
